Rp1,200,000

Ultrasonic Flow Meter TUF2000H ( DN 50-700mm ) 0822 1729 4199

  • Alamat: jalan H Kelik no.20 Kelapa dua kebon jeruk
  • Kota: Jakarta Barat
  • Negara: Indonesia
  • Kodepos: 11550
  • Listed: 8 Agustus 2020 20:22
  • Expires: This ad has expired
Jual Flow Meter TUF2000H Call 082217294199

Description

Informasi Produk & Harga Hubungi Marga Setia Group:
Contact Person
Nama : Tantan Asep
Alamat : Jalan H.Kelik No.20 RT.03/RW.08 Kelapa Dua Kebon Jeruk Jakarta Barat 11550
Phone : 082112325856 / 082217294199
WhatsApp : 082217294199 / 082112325856
Telp & Fax : 021.22054159
Email : atantan.margasetia@gmail.com

Link :
www.margasetia.com
www.tantanteknik.com
www.tantantechindo.com
www.tantaninstruments.blogspot.com

Portable Ultrasonic Flow Meter TUF2000H 50-700mm TM-1

Flow Meter adalah alat untuk mengukur laju aliran atau jumlah suatu fluida yang bergerak mengalir

Jenis cairan yang diukur oleh flow meter bisa berbagai macam cairan seperti air minum, air limbah, air lumpur, susu, cairan kimia, air gula, alkohol, oli dll

Ultrasonic Flow Meter TUF2000H mengukur laju aliran cairan dengan metode ultrasonik. Dilengkapi dengan transducer TM-1 untuk diameter pipa 50mm-700mm

Catatan: untuk foto fisik riil mengenai apa yang didapat dalam paket, Harap diperhatikan spesifikasi

Items

Performance & Parameter

Meter

Principle

Transit time ultrasonic flowmeter
Accuracy

± 1%
Display

4×16 character LCD with backlight
Signal Output

1 way OCT pulse output(Pulse width 6~1000ms, the default
value is 200ms)
Data Interface

Insulate RS232 serial interface, upgrade the flowmeter
software by computer

Pipe Installation
Condition

Pipe Material

Steel, Stainless Steel, Cast Iron, Copper, Cement pipe, PVC,
Aluminum, Glass Steel product, liner is allowed.
Pipe Diameter

15~6000mm (depends on transducer)
Straight Pipe

Transducer installation should be satisfied: upstream 10D,
downstream 5D, 30D from the pump.

Measuring
Medium

Type of Liquid

Single liquid can transmit sound wave, such as water, sewage,
oil, chemicals, plant effluent, beverage, ultra-pure liquids, etc.
Temperature

-30~160°c
Turbidity

Less than 10000ppm and little bubble
Flowrate

0 ~ ±7m/s
Working
Environment

Temperature

main unit: -20~60°c; Transducer: -30~160°c
Humidity

main unit: 85%RH; Transducer protection level: IP67
Power Supply

3 built-in Ni-MH batteries 1.2V (for over 12 hours of operation).
Achieve to continuous measurement by connecting AC 90V – 260V adapter.
Power Consumption

1.5W
Housing Material

Inflaming retarding ABS
Main unit Weight

390g

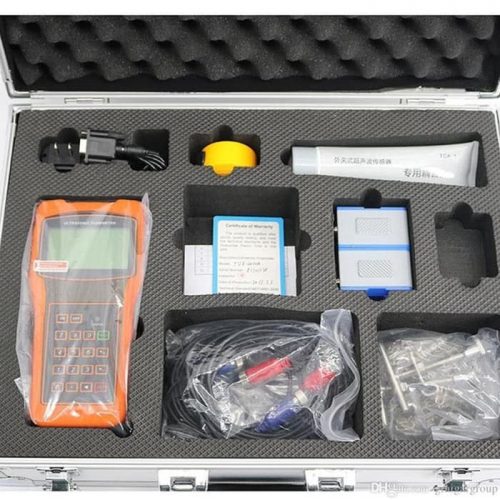

Standard Configurations:

1. Ultrasonic Flowmeter
2. TM-1 Transducer (DN 50-700 mm)
3. Signal cable
4. Data cable
5. Fixed steel chain
